22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices

大画像 : 22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices

商品の詳細:

起源の場所:	中国
ブランド名:	Jiayao
証明:	ISO9001:2008 COC
モデル番号:	バイオニック・ツリー・タワー

お支払配送条件:

最小注文数量:	4トン
価格:	US$1400-1600,1-100Tons;US$1000-1200,>=100 Tons
パッケージの詳細:	木箱に詰めるか、亜鉛メッキシートで梱包します
受渡し時間:	15日
支払条件:	LC、T/T
供給の能力:	月産500トン

連絡先今雑談しなさい

22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices

説明

製品名:	隠しアンテナを組み込んだ 22M バイオニックツリータワー	材料:	ASTM A36 A572 Gr50
ナットとボルト:	グレード 8.8/6.8/48	証明:	ISO9001:2008 COC
身長:	9-40m	標準:	ANSI/TIA-222-G/H/F、EN 1991-1-4 および EN 1993-3-1
風速:	0~300km/h	亜鉛めっき規格:	ASTM A123/ISO 1461
環境への影響:	環境に優しい	防錆処理:	溶融亜鉛メッキ
一生:	20年以上	溶接:	AWSD1.1
設置場所:	都市環境	位置:	都市部の中心部
応用:	都市と農村の両方に適しています	関数:	空気浄化と環境改善
設置場所:	市街地、公園、工業地帯	追加機能:	大気質センサーとデータ監視
デザインのインスピレーション:	天然木の構造
ハイライト:	Bionic Tree Tower with hidden antenna mounts , 22M Bionic Tree Tower for 5G 4G , Bionic Tree Tower with cable management

22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices 0

JIAYAO CO., LTD

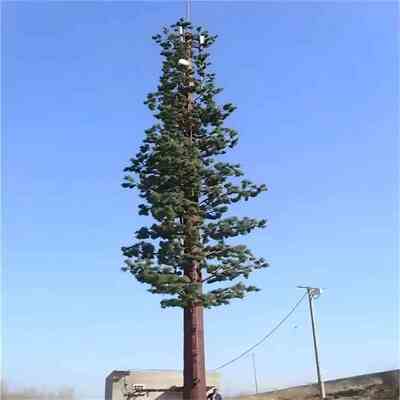

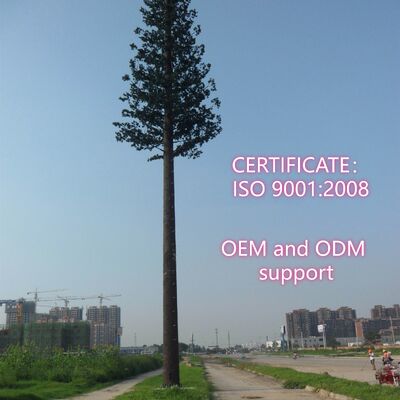

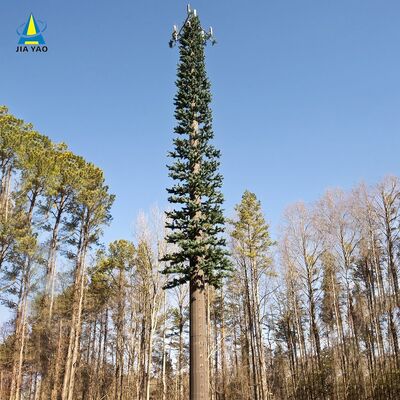

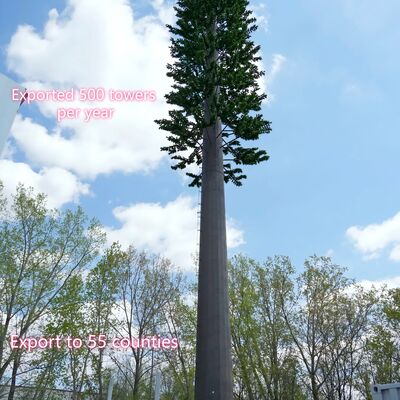

Bionic tree tower, also known as an artificial tree tower, is an innovative structure designed to replicate the look of natural trees while serving critical infrastructure purposes. Unlike traditional towers that often stand out visually, this tower blends seamlessly into landscapes, making it a preferred choice for areas where aesthetic harmony and functionality are both priorities.

Core Structural & Design Features

Tree-Like Appearance: It features artificial trunks, branches, and even leaves made from durable materials like fiberglass or high-strength plastics, closely resembling real trees in shape, color, and texture.
Modular Construction: The tower is built with modular components, allowing customization in height (typically 5m to 30m) and “tree species” to match local flora, such as pine, palm, or oak trees.

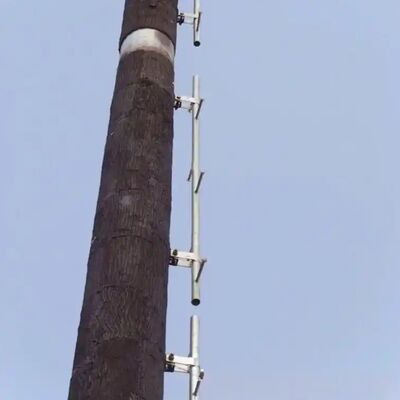

Integrated Functionality: Equipped with hidden platforms, antenna mounts, and cable management systems to support telecommunications equipment (5G/4G antennas, microwave devices), environmental sensors, or even small wind/solar energy harvesters.

Key Materials & Manufacturing Standards

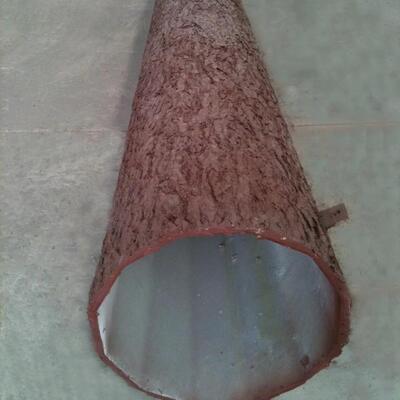

Primary Materials: High-quality fiberglass, UV-resistant plastics, and galvanized steel for the internal support structure, ensuring both durability and corrosion resistance.
Manufacturing Compliance: Follows industry standards like ASTM D256 for impact resistance of plastic components and ISO 1461 for galvanization, guaranteeing long-term performance in outdoor conditions.
Aesthetic Details: Leaves and branches are designed to withstand extreme weather (high winds, heavy snow) and maintain colorfastness for years, using advanced pigmentation techniques.

1.Specifications

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2

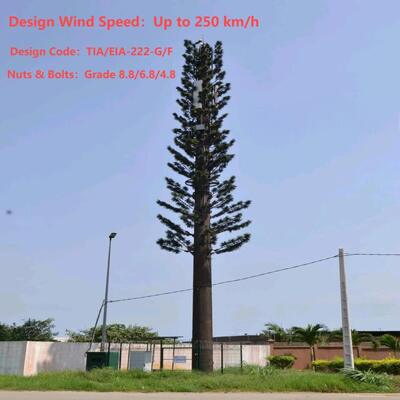

3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)

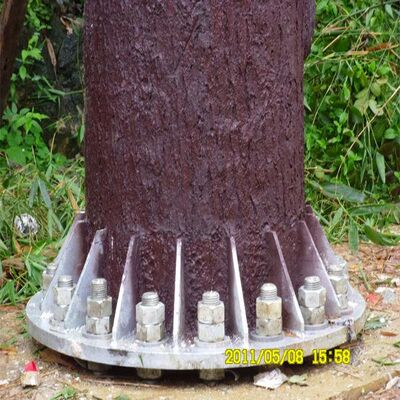

Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
